Cable Series & Specifications

Two engineered platforms — LHD and TS — each configurable across activation point, jacket system, form factor and packaging.

Home / Cable Series
LHD Series

Linear Heat Detection Cable

Fixed-temperature LHD for fire protection, tunnels, data centers, warehouses, cable galleries. Short-circuits when any point along the run reaches the activation temperature.

Jump to LHD Datasheet ↓
TS Series

Compact Thermosensitive Cable

Slim thermosensitive cable for in-device integration: EV battery packs, motors, transformers, power adapters, compressors, small appliances.

Jump to TS Datasheet ↓
LHD Series

LHD — Linear Heat Detection Cable

The LHD platform is a fixed-temperature linear heat detector. Its thermosensitive insulation collapses at the designed activation point, short-circuiting the two inner conductors and giving your addressable fire panel a clean, unambiguous trigger — anywhere along the cable run.

It is the cable we most often recommend for cable trays, road and rail tunnels, floating-roof tank rims, warehouse racking, cable galleries and data-center under-floors: any environment where point detectors are too sparse or the ceiling is simply not there.

Why Engineers Pick LHD

  • Continuous coverage — every centimeter is a sensor, no dead zones
  • Factory-calibrated activation at 68 / 88 / 105 / 138 / 170 / 185°C
  • Triggers an alarm within 3–10 s/m under direct flame exposure
  • IP67 jacket system — IEC 60529 IPx7 baseline; also passes our internal 24-hour static-immersion soak test
  • Tensile strength > 2 kg — survives cable-tray pulls
  • Compatible with all major LHD control panels (dry-contact loop)

LHD Datasheet

Standard Activation Points68 · 88 · 105 · 138 · 170 · 185°C (± 15°C tolerance)
Custom ActivationAny point within 68 – 200°C on request
Cable Diameter2.5 mm – 3.0 mm (customizable)
Jacket Thickness0.10 mm – 0.15 mm
Burn / Response Speed3 – 10 s per meter
Spool Length50 m / roll (500 m / 1000 m drums on request)
Ambient Operating Temp-40°C to +90°C
Ingress ProtectionIP67 (IEC 60529 IPx7); internal 24 h static-immersion soak as additional factory check
Jacket ColorsBlue (std) · Red · Custom Pantone
Conductor OptionsTinned copper · Nickel-copper · Non-metallic
ComplianceRoHS · CE · ISO 9001 batch QMS

Typical Deployments

Road tunnels, highway & metro tunnels, cable-tray fire detection, petrochemical tank roofs, cold-storage warehouses, conveyor galleries, data-center cold aisles, server-room under-floor detection.

Reference Customers

Our LHD cable is the fire-detection cable standard inside facilities of Huawei, Midea and several Chinese industrial groups — delivered under their own internal quality codes, with batch-level inspection reports.

Request LHD Sample →

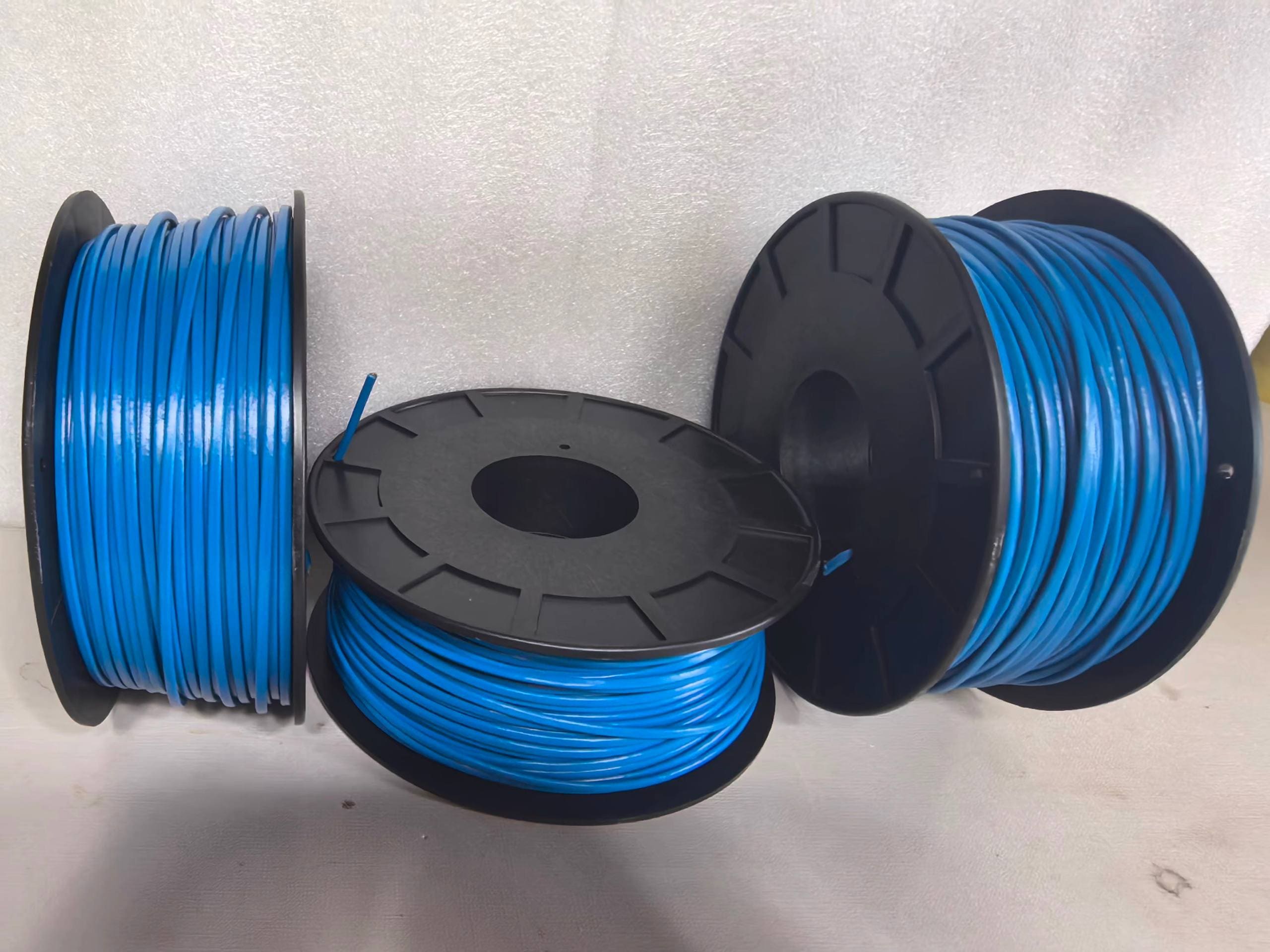

Blue LHD thermal sensor cable secured along a galvanised steel cable tray inside a chemical processing plant, fastened with stainless clamps to the support structure Three blue LHD thermal sensor cable spools on black plastic flanged reels, one laid flat in front showing the spool face, photographed against a plain studio background Polished cross-section of a thermal sensor cable end gauged by digital calipers, twin conductor strands embedded in the thermosensitive compound Stripped thermal sensor cable end exposing the inner conductor pair and thermosensitive compound
At a Glance

LHD Series · Quick Facts

  • Activation68 – 200°C
  • Response3 – 10 s/m
  • Tolerance± 15 K std
  • IP RatingIP67 + 24 h soak
  • Spool50 m / 500 m / 1000 m
  • Lead Time3 – 5 days
Request LHD Sample Engineering review per inquiry · Sample subject to project scope, freight at requester's cost
→
🌡️

Temperature Tuning

Any activation point from 68°C to 200°C. Tolerance band tightened on request — down to ±5°C for high-reliability projects.

🧥

Jacket Engineering

PVC, LSZH, silicone, XLPE and fluoropolymer jackets. We help select against ambient temperature, chemical exposure and smoke-toxicity codes.

📏

Form Factor & Packaging

Custom diameter, spool length, labeling and packaging. We match your assembly-line receiving spec, not the other way around.

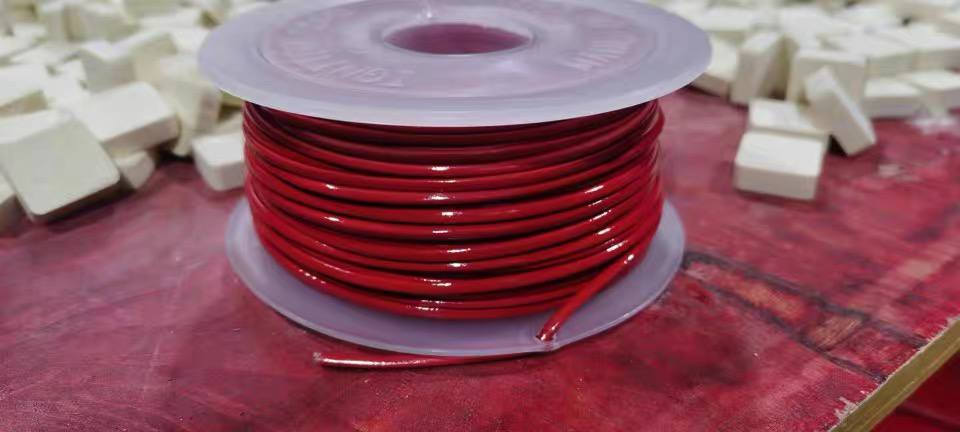

Red TS thermosensitive cable wound on a clear plastic flanged spool with a smaller poly-bagged coil shown below it on a plain background Close-up of TS cable on transparent spool showing compact diameter Three rows of approximately eighteen stacked red TS thermosensitive cable spools on a black workbench, with cardboard cartons in the background and a deep blue panel behind the stack A large flat coil of red TS thermosensitive cable cross-tied with clear plastic strapping, with a second upright coil bundle visible behind it on a workbench
At a Glance

TS Series · Quick Facts

  • Activation75 – 180°C
  • Tolerance± 5 K tight
  • Form FactorSlim · Flexible
  • ComplianceRoHS · CE · UL
  • MOQLow · OEM friendly
  • Lead Time3 – 5 days
Request TS Sample Cut-to-length evaluation reel · ships globally
→
TS Series

TS — Compact Thermosensitive Cable

The TS platform is designed for in-device integration: a thin, flexible thermosensitive cable that lives inside the product you build. It senses an over-temperature event in the immediate vicinity of the thermal risk — a motor winding, a battery cell, a transformer core — and cuts the control loop before insulation damage occurs.

Unlike NTC thermistors or thermocouples, TS is itself the trigger element. It is the entire sensing path in one part — which is why OEMs choose it for compact, cost-sensitive and safety-critical designs.

Why Engineers Pick TS

  • Single-part over-temperature sensing — fewer SKUs, fewer failure modes
  • Custom setpoint matched to your thermal design
  • Slim and flexible — routes through motor slots and battery pack seams
  • Stable electrical and dielectric behavior under continuous duty
  • RoHS · CE · ISO 9001 batch inspection

TS Datasheet

Activation PointCustom (typical range 75 – 180°C)
ToleranceStandard ±10°C · Tight band ±5°C on request
Cable DiameterMultiple slim profiles available
Cut LengthCut-to-length, spool or bulk reel
Jacket ColorRed (std) · Blue · Custom
Jacket MaterialPVC / LSZH / Silicone — selected against application
ComplianceRoHS · CE · UL-grade compound available
PackagingSpool / coil / custom labeled reels

Typical OEM Deployments

TV power boards, high-wattage motors, EV battery packs and BMS, transformer windings, refrigerator compressors, power adapters, induction cooker coils, e-bike battery protection, small-appliance over-temperature cut-off.

Reference Customers

Midea and several other Chinese consumer-electronics OEMs specify our TS cable inside their overheat-protection modules — shipped under their internal approved-vendor list with per-batch test reports.

Request TS Sample →

Cable Core Architecture

Both LHD and TS platforms can be built with or without a metallic inner conductor. Here is how to decide.

Polished cross-section comparison of two thermal sensor cable architectures — metal-conductor on the left and non-metal core on the right — with a millimetre scale ruler for engineering reference

Metal-Core vs Non-Metal Core

Metal-core (standard): twin copper or nickel-plated conductors for low-resistance signal transmission to the panel — the default for LHD loops. Non-metal core: purpose-built for specific detection topologies where metallic conduction is undesirable — specified on a case-by-case basis.

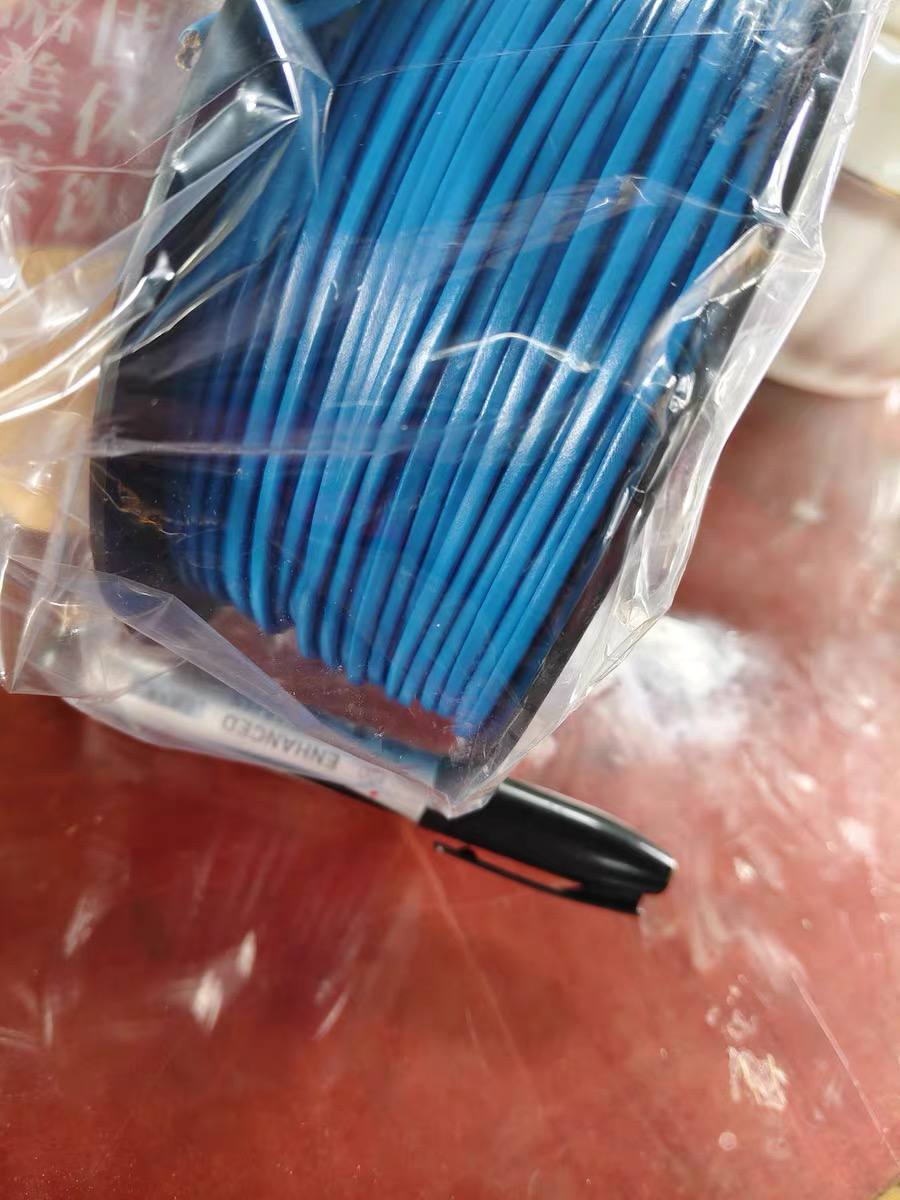

A blue LHD thermal sensor cable spool sealed inside a clear protective polybag, bottom edge showing a partially visible 'ENHANCED' label, photographed on a red workbench

Packaging & Logistics

Every spool is vacuum-wrapped on a wooden or plastic drum and palletized to ASTM/ISPM-15 standards. We ship FOB, CIF or DDP to 50+ countries with full customs documentation prepared by our export team.

Need a Non-Standard Cable?

Send us the activation temperature, jacket requirement and quantity. We'll reply with a draft spec sheet and ship an evaluation sample (subject to project scope, freight at requester's cost).
